[NDT] High Power CT Inspection System:
YXLON Y.CT Compact Demo Unit for Sale
Feature of Y.CT Compact
High Power X-ray:
High power minifocus X-ray with a tube voltage of 450kV generates the output of 1500W which inspects the medium to large-sized and relatively thick parts such as cast aluminum parts for automotive engines. YXLON Y.CT Compact is widely used especially in the automobile industry in the world.
Quality Image with Low Noise:

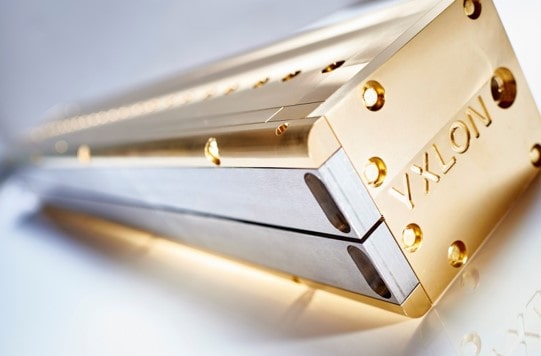

YXLON’s own made line detector array (LDA) physically reduces the unwanted scatter radiation and makes a quality X-ray image with low noise.
For Larger Object:
Fan beam X-ray with Field of View (FoV) Extension mode is capable of scanning larger objects up to the diameter of 660mm and the height of 750mm.
YXLON CT Compact Demo Unit Specification
| Y.CT Compact XL-Mag | |
| Inspection Mode | Fan-beam CT |
| Manipulation | 3 axes |
| X-ray Tube: Y.TU450-D11 | |
| Maximum Energy | 450kV |
| Maximum Power | 0.7kW / 1.5kW |
| Focal spot | 0.4 mm / 1.0 mm |
| Detector: YXLON Line Detector Array | |
| Active length | 765 mm |
| Pixel pitch | 254 μm |
| Temperature stabilization | yes |
| Inspection Item: | |
| Maximum part size (Ø x h) | 660 mm x 820 mm |
| Turntable diameter | 300 mm (optional + 300 mm extension) |
| Maximum part weight | 50kg |
| CT Parameters | |
| Focus Detector Distance (FDD) | 1,375 mm |
| Magnification | 1.37 / 2.0 / 2.6 |
| Voxel size | down to 70 μm |
| Maximum Field of View (FOV) | |
| Standard mode (Ø x h) | 370 mm x 750 mm @ Mag 1.37 250 mm x 750 mm @ Mag 2.0 195 mm x 750 mm @ Mag 2.6 |
| Extended mode (Ø x h) | 660 mm x 750 mm @ Mag 1.37 460 mm x 750 mm @ Mag 2.0 360 mm x 750 mm @ Mag 2.6 |
| Minimum scan time | < 15 sec. per slice |
| Minimum reconstruction time | < 15 sec. per slice (computed in parallel to scan of next slice) |
| Cabinet | |
| Cabinet size (w x h x d), approx. | 2,460 mm x 2,770 mm x 1,860 mm |
| Cabinet weight, approx. | 13,000 kg |
Y.CT Compact with a high power X-ray is suitable for large casting parts that are relatively thick and is able to output high-quality scan images with less noise. However, generally this class of X-ray CT Inspection equipment is expensive. This time, we will share information about the sale of demo equipment. The investment cost will be significantly lower than the normal price and the delivery time will be shorter.
Please contact us if you are interested.
Phone Contact:
Robin Seino (Mobile Phone: 083 064 2112)
Wiphawee Sawetwiharee (Mobile Phone: 083 064 6976)
