[New Product] FreeScan Omni Has Arrived! Completely Wireless & PC-Free: Turn Your Shop Floor into a QA Lab!
[New Product] Transform Your Shop Floor into a 3D Inspection Lab. Introducing the Wireless Standalone 3D Metrology Scanner “FreeScan Omni” Series!
A cutting-edge solution engineered to revolutionize quality control (QC) and reverse engineering workflows across automotive, aerospace, mold making, casting, and heavy machinery industries. Fully untethered from heavy laptops and cumbersome cables, it delivers high-precision 3D measurement and instant CAD inspection right on site.
Traditional handheld 3D scanning on the shop floor has long faced operational bottlenecks: wheeling around high-spec laptops on carts, managing tangled power and data cables, and returning to office workstations just to process data and generate inspection reports.

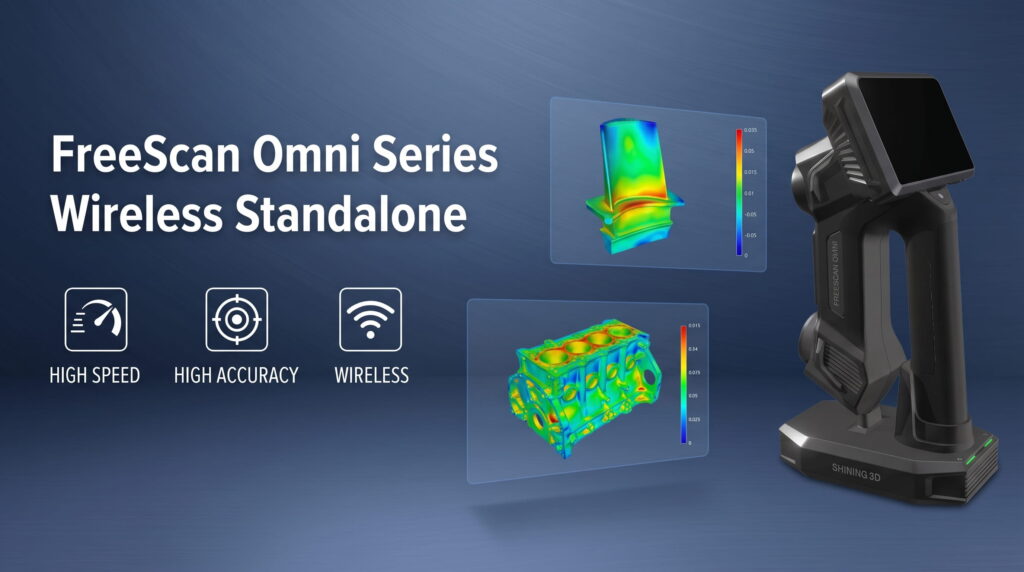

SHINING 3D’s newly released “FreeScan Omni” integrates a high-performance edge processor, high-capacity internal storage, and a 5.5-inch high-brightness touchscreen directly into the device. The entire workflow—“3D Scanning ➔ Mesh Generation ➔ CAD Comparison ➔ PDF Report Export”—is completed on-device (Scan-to-Inspect) without needing an external PC.
How FreeScan Omni Works
4 Key Advantages How FreeScan Omni Transforms Shop Floor Inspection
1. Truly Standalone: Complete On-Device Inspection & Instant Reporting
Featuring an onboard CPU, 32 GB RAM, 1 TB SSD, and an intuitive touchscreen, users can perform CAD alignment, generate 3D color deviation maps, and verify pass/fail tolerances in real time right where the part sits.
- Hot-Swappable Batteries: Swap batteries without powering down the device for continuous, uninterrupted field operation.
- Smart Dock Included: Auto-charging and seamless Wi-Fi/Ethernet network pairing simply by docking the scanner.
2. Certified Metrology Accuracy (0.02 mm) & Ultra-Fast Capture
Delivers a single-shot accuracy of up to 0.02 mm and a blazing-fast scanning speed of 7,619,000 points/s, outperforming traditional wired metrology scanners.
- PTB-Certified Onboard Inspection: Verified in accordance with VDI/VDE 2634 Part 3 and ISO 10360 standards with ISO/IEC 17025 accredited lab calibration certificates.
- Dual 5MP Industrial Cameras: Captures sharp, highly detailed 3D data and fine edges with minimal noise.
3. Patented Video Photogrammetry (VPG) for Large-Scale Scanning
Scanning large structures—such as multi-meter castings, aircraft fuselages, construction machinery frames, or wind turbine blades—traditionally required applying hundreds of coded targets.
With SHINING 3D’s patented VPG technology, simply place the included magnetic carbon-fiber scale bar. The scanner automatically tracks it via video capture to correct volumetric coordinates in real time, boosting volumetric accuracy up to 0.02 mm + 0.015 mm/m while drastically reducing setup time.
4. Versatile 4-in-1 Hybrid Light Source: Blue Laser + Infrared (IR) VCSEL
93 Blue Laser Cross Lines: Captures large surface areas at maximum speed.
25 Parallel Blue Laser Lines: Captures fine details and sharp radii with up to 0.01 mm resolution.
Single Blue Laser Line: Reaches deep cylindrical holes, narrow slots, and recessed features.
Markerless Rapid Scan: Captures full geometry instantly without placing any target markers. Ideal for digital archiving, wood patterns, and rapid reverse engineering.
Choosing Between “FreeScan Omni” and “FreeScan Omni Lite”
The FreeScan Omni series is available in two configurations tailored to your operational requirements and budget. Both models share identical hardware performance, optical specs, scanning speed, and measurement accuracy.
💡 Overview of Key Software Modules & Features
Enables complete inspection directly on the scanner touchscreen—from scanning, CAD alignment, and 3D color deviation mapping to generating audit-ready PDF reports on site.
Eliminates the need for coded targets on large objects by using a carbon-fiber scale bar to maintain high volumetric accuracy across large measurement spans.
Automatically identifies circular holes, rectangular cutouts, and slots to extract precise geometric feature dimensions without manual selection.
A comprehensive desktop inspection software for advanced GD&T analysis, detailed geometric evaluation, and in-depth quality report editing at your office workstation.
| Features / Software | FreeScan Omni (Flagship Package) |
FreeScan Omni Lite (Scalable Package) |
|---|---|---|
| On-Device Inspection Module | Included (Ready-to-Use) | Optional (Expandable Later) |
| Video Photogrammetry (VPG) | Included | Optional (Expandable Later) |
| AI Feature Recognition | Included | Optional (Expandable Later) |
| SHINING3D Inspect for PC | Included | Optional (Expandable Later) |
| Recommended For | Teams seeking an immediate, fully-equipped Scan-to-Inspect solution for shop floor quality control. | Businesses looking to minimize initial investment while retaining full hardware performance and modular software scalability. |
FreeScan Omni Series Technical Specifications
| Light Source | Blue Laser (93 Cross Lines / 25 Parallel Lines / 1 Single Line) & Infrared (IR) VCSEL |
|---|---|
| Single-Shot Accuracy | 0.02 mm |
| Scan Speed | 7,619,000 points/s |
| Volumetric Accuracy (Standard) | 0.02 mm + 0.03 mm/m |
| Volumetric Accuracy (with VPG) | 0.02 mm + 0.015 mm/m (up to 0.015 mm + 0.012 mm/m) |
| Max. Field of View (FOV) | Laser Mode: 580 × 650 mm / IR Mode: 1205 × 1104 mm |
| Depth of Field | 830 mm (170 mm – 1000 mm) |
| Internal Hardware Specs | High-performance Edge Computing Module / 32 GB RAM / 1 TB SSD |
| Weight | ≤ 1.1 kg (Lightweight Industrial Design) |
| Certifications & Standards | VDI/VDE 2634 Part 3, ISO 10360 (Calibrated in ISO/IEC 17025 Accredited Lab) CE, FCC, RoHS, TELEC, TiSAX, 2026 Red Dot Design Award Winner |
Request an On-Site Live Demo or Sample Measurement
Interested in seeing how the FreeScan Omni handles shiny metal, dark surfaces, or complex castings without a PC?
Our experienced 3D metrology engineers offer on-site demonstrations and online consultations tailored to your production challenges.
